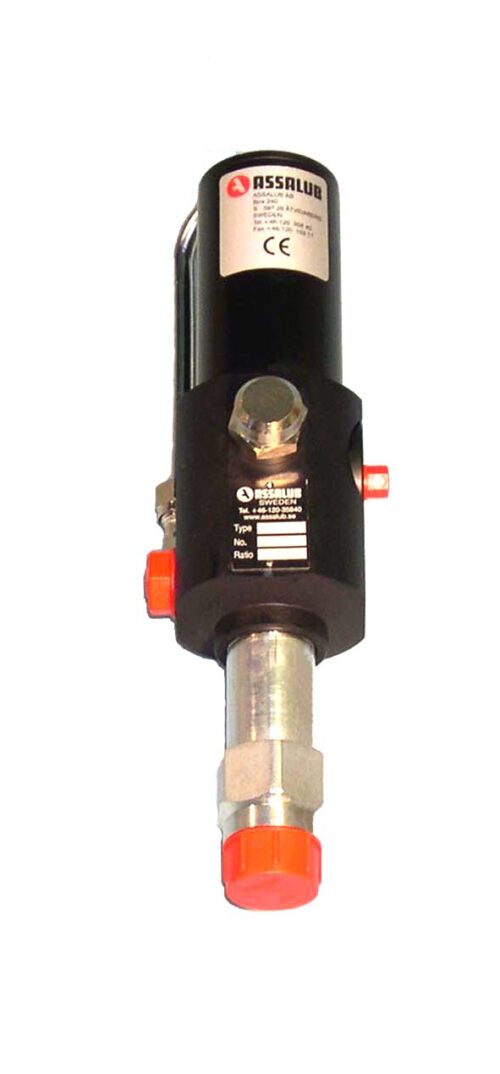

Air-operated oil pump, ratio 1:3, basic execution
art.nr: 0102164
Pneumatic oil pump, ratio 1:3, are suitable for pumping oil from a storage centre, to the work place via transfer lines, hose reels and meters.
| 0,3-1,0 MPa/43-150 psi |
- Documentation
- Description
- Technical info
| Pump type: | 0102164 | |
| Oil: | 80 cSt 40 °C | |
| Temperature: | 20 °C | |
| Air pressure: | 0,6 MPa/87 psi |
To see how to read the diagramme look at the same for 1:65 grease pump.
| Output: | 20 litres per minute with an SAE30 oil at 0.5 MPa (70 psi) |
| Air pressure min-max: | 0,3-1,0 MPa/43-150 psi |
| Air consumption: | See below |
| Supply pressure at 0.8 MPa: | Op. pressure 2.4 MPa (350 psi) |
| Oil outlet: | ISO-G3/4 female |
| Oil inlet: | ISO-G1 male |
| Air connection: | ISO-G1/4 female |
| Weight: | 2,6 kg |
| Materials of construction: | Anodized aluminum, steel, stainless steel, brass, plastic |
| Seal materials: | Nitrile rubber |
| Part Number: | 0102164 |
